FMB120
GNSS/GSM/Bluetooth tracker with internal GNSS/GSM antennas
Teltonika FMB120 is an advanced tracker with internal GNSS, GSM antennas, Bluetooth connectivity and a backup battery. FMB120 is designed for light vehicle tracking but is also suitable for advanced applications like logistics, delivery services, utility transport and more. It is excellent for refrigerated transport because it has an extended input/output set and a 1-wire interface for temperature monitoring. With Teltonika CAN adapters, FMB120 can be even used in agriculture or construction & mining.
Specification
Module
- Name : Teltonika TM2500
- Technology : GSM/GPRS/GNSS/BLUETOOTH
GNSS
- GNSS : GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
- Receiver : 33 channel
- Tracking sensitivity : -165 dBM
- Position accuracy : < 2.5 CEP
- Velocity accuracy : < 0.1m/s (within +/- 15% error)
- Hot start : < 1 s
- Warm start : < 25 s
- Cold start : < 35 s
Cellular
- Technology : GSM
- 2G bands : Quad-band 850 / 900 / 1800 / 1900 MHz
- Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
- Data support : SMS (text/data)
Power
- Input voltage range : 10 – 30 V DC with overvoltage protection
- Back-up battery : 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
- Power consumption : At 12V < 6 mA (Ultra Deep Sleep), At 12V < 8 mA (Deep Sleep), At 12V < 11 mA (Online Sleep), At 12V < 20 mA (GPS Sleep)
Bluetooth
- Specification : 4.0 + LE
- Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
Physical specification
- Dimensions : 65 x 56.6 x 18.9 mm (L x W x H)
- Weight: 55g
Interface
- Digital Inputs : 3
- Digital Outputs: 2
- Analog Inputs: 2
- CAN Adapter inputs: 1
- 1-Wire: 1
- GNSS antenna: Internal High Gain
- Cellular antenna: Internal High Gain
- USB: 2.0 Micro-USB
- LED indication: 2 status LED lights
- SIM : Micro-SIM + eSIM
- Memory: 128MB internal flash memory
Operating environment
- Operating temperature (without battery) : -40°C to +85°C
- Storage temperature (without battery) : -40°C to +85°C
- Operating humidity 5% to 95% non-condensing
- Ingress Protection Rating IP41
- Battery charge temperature -0°C to +45°C
- Battery discharge temperature -20°C to +60°C
- Battery storage temperature : -20°C to +45°C for 1month, -20°C to +35°C for 6months
FMB920
Small and smart tracker with bluetooth and internal battery
Teltonika FMB920 is a compact and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. FMB920 is designed for light vehicle tracking in applications like insurance telematics, rental cars, recovery of stolen cars, public safety services, delivery transport, taxi and much more. Inputs/outputs extend device usage scenarios. Digital input can be used for ignition, door or alarm button status monitoring. Vehicle remote immobilizing may be achieved using FMB920 digital output.
Specification
Module
- Name : Teltonika TM2500
- Technology : GSM/GPRS/GNSS/BLUETOOTH
GNSS
- GNSS : GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
- Receiver : 33 channel
- Tracking sensitivity : -165 dBM
- Position accuracy : < 3 CEP
- Hot start : < 1s
- Warm start : < 25s
- Cold start : < 35s
Cellular
- Technology : GSM
- 2G bands : Quad-band 850 / 900 / 1800 / 1900 MHz
- Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
- Data support : SMS (text/data)
Power
- Input voltage range : 6 – 30 V DC with overvoltage protection
- Back-up battery : 170 mAh Li-Ion battery (0.63 Wh)
Bluetooth
- Specification : 4.0 + LE
- Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
Physical specification
- Dimensions : 79 x 43 x 12 mm (L x W x H)
- Weight: 54g
Interface
- Digital Inputs: 1
- Digital Outputs: 1
- Analog Inputs: 1
- GNSS antenna: Internal High Gain
- Cellular antenna: Internal High Gain
- USB: 2.0 Micro-USB
- LED indication: 2 status LED lights
- SIM: Micro-SIM
- Memory: 128MB internal flash memory
Operating environment
- Operating temperature (without battery) : -40°C to +85°C
- Storage temperature (without battery) : -40°C to +85°C
- Operating humidity : 5% to 95% non-condensing
- Ingress Protection Rating : IP54
- Battery charge temperature : -0°C to +45°C
- Battery discharge temperature -20°C to +60°C
- Battery storage temperature : -20°C to +35°C for 1month, -20°C to +30°C for 6months

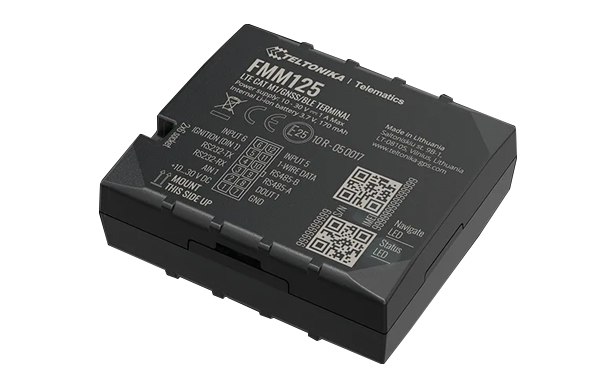

FMM125
Advanced CAT M1/GSM/GNSS/BLE terminal with internal antennas, RS485, RS232 interfaces and backup battery
FMM125 is small and professional real-time tracking terminal with GNSS and LTE CAT-M1/NB-IoT/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE CAT-M1/NB-IoT modules with fallback to 2G network, internal GNSS, 3G antennas. FMM125 features RS485, RS232 data interface, which gives ability to connect various third-party external devices. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.
Specification
- Device support both LTE M1 and NB IoT connectivity
- Double network reliability and multiple network selection
- Bluetooth for external devices and Low Energy sensors
- RS232/RS485 serial communication interfaces
- CAN data reading from vehicles and specialized transport
- 1-Wire® interface to monitor temperature data and RFID/iButton tags
FMM130
Advanced CAT M1/GSM/GNSS/BLE terminal with internal antennas and backup battery
FMM130 is small and professional real-time tracking terminal with GNSS and LTE CAT-M1/NB-IoT/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE CAT-M1/NB-IoT modules with fallback to 2G network, internal GNSS and LTE antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.
Specification
- Device support both LTE M1 and NB IoT connectivity
- Allows device to work without external power source
- Configurable DIN/AIN for flexible remote monitoring and control
- Negative input will allow easier installation of accessories
- CAN data reading from vehicles and specialized transport
- Impulse inputs for fuel flow meters data reading
FMC130
FMC130 is small and professional real-time tracking terminal with GNSS and LTE/3G/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE modules, internal GNSS, LTE antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.
Specification
- Reliable 4G connection with fallback to 3G network
- Allows device to work without external power source
- Configurable DIN/AIN for flexible remote monitoring and control.
- Negative input will allow easier installation of accessories
- CAN data reading from vehicles and specialized transport
- Impulse inputs for fuel flow meters data reading
