DSPPA Peripherals

Condenser microphone
This condenser microphone is based on an electric transducer element in a sturdy housing with shielding against wind and wind bursts (pops). It is intended for public address and sound reinforcement applications, such as in churches, theaters, and conference centers

Microphone floorstand

Adjustable from 850 to 1600 mm (2.79 to 5.25 ft) with twist clamp
Three folding legs (360 mm; 1.18 ft) for stability
Column terminates in male 3/8″ Whitworth thread

LBC 1410/10 | Sound System Volume Control
Bosch introduces a full range of volume controls and program selectors to provide a complete public address solution.

Data Sheet

Mail Us

Share This:

Specification

Condenser microphone

Condenser transducer
Unidirectional
High speech intelligibility
Low sensitivity to case noise and vibrations
Phantom powered
Rugged construction
Modern non-reflecting matt black finish

LBC 1410/10 | Sound System Volume Control

12 W, 36 W and 100 W versions
Available in power-save or failsafe versions
Built-in 24 VDC override relay
Continuous rotating system
Suitable for 3-wire and 4-wire systems

Line to Aux converter 100V

High level to Low level converter
70/100 volt interface
Line Level Outputs
Suitable for long distance transmission
Negates the need to run new cables from main amplifier
Compact design

Data Sheet

Mail Us

Share This:

Specification

Model : aw100D 2 Channels
System : 2CH High Level to Line Level Converter
Chassis : Color Black
Material : Aluminium
Input High Level Input : Phoenix connector x 2
Output Line Level Output : RCA connector x 2
Power Requirement : None
Dimension : 136mm(W) x 80mm(D) x 30mm(H)
Net weight : 0.45kg

V30 - V60 - V120 Volume control 6W-30W-60W-120W

6W, 30W, 60W, 120W POWER HANDLING: awWILLS flush in-wall volume control works with all audio and video systems up to 120W power. A convenient audio source volume setting that allows you to control speaker volume independently in each audio zone.

IN-WALL/WALL PLATE: This whole-house volume control is a universal standard decorative flush in-wall or wall mount installation finishing plate for speaker system control.

ROTARY KNOB ADJUSTMENT: A multi-position light-touch rotary knob style adjustment for whole house audio source volume systems. You can control speaker volume independently within various areas of your home, office or business applications.

Features

Simple modern appearance
Stronger material, bright color
Ergonomic design
Large knob design, rotation convenient and labor-saving
Quality material, can effectivelt resist scratches

Data Sheet

Mail Us

Share This:

Specification

Model : V6

Method : Electric resistance
Rated Power : 6W
Attenuation : Step 1: OFF
Step 2: -4dB
Step 1: -1dB
Step 1: -0.5dB
Step 1: 0dB
Frequency Response : 20-20KHz
Dimension : 87X87X24
Transformer Size : No
Color : White
N.W : 62g

Model : V6

Method : Transformer
Rated Power : 30W
Attenuation : Step 1: OFF
Step 2: -17dB
Step 1: -11dB
Step 1: -4.5dB
Step 1: 0dB
Frequency Response : 20-20KHz
Dimension : 87X87X40
Transformer Size : 35X30X32
Color : White
N.W : 135g

Model : V60

Method : Transformer
Rated Power : 60W
Attenuation : Step 1: OFF
Step 2: -18dB
Step 1: -11dB
Step 1: -5dB
Step 1: 0dB
Frequency Response : 20-20KHz
Dimension : 87X87X50
Transformer Size : 50X40X38
Color : White
N.W : 295g

Model : V120

Method : Transformer
Rated Power : 120W
Attenuation : Step 1: OFF
Step 2: -17dB
Step 1: -11dB
Step 1: -5.5dB
Step 1: 0dB
Frequency Response : 20-20KHz
Dimension : 87X87X50
Transformer Size : 55X45X42
Color : White
N.W : 530g

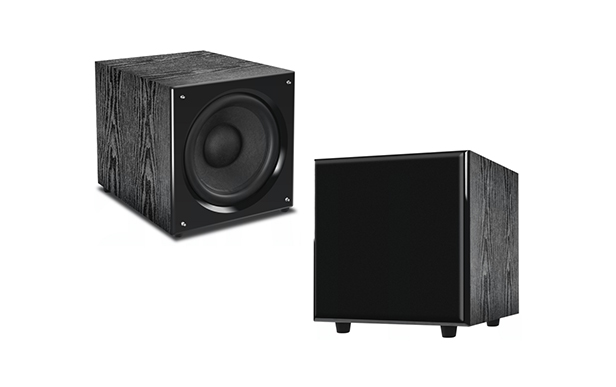

VOIDE-3 Subwoofer 300 Watts

Various interfaces to match your audio system

Line (Low-Level) Inputs to connect to the pre-amp or line level outputs of the full range amplifier to the inputs of the subwoofer amplifier. The inputs are internally summed to mono.
Line (Low-Level) Outputs provide a line level full range output for the connection of additional equipment. This output is only available when a signal is present at the Low Level RCA outputs Input.
High-Level Inputs Used to connect from the speaker outputs of the full range amplifier or home theater receiver to the subwoofer amplifier with speaker wire. A mono signal derived from the stereo speaker level source which then feeds the subwoofer amplifier input.
