Cassida 5510 UV
Constant Count Quality
- Maximum counting accuracy for currency stacks of less than 100 bill sensured by technological advances
- Accurately detects counting errors
User Friendly
- Intuitive and easy to operate regardless of the user’s experience with bill counters
- Auto-start function streamlines cash processing operations
- Quiet operation
- Light weight and compact
- Easy integration into any business environment thanks to its contemporary design
Specification
- Counting speed, notes/min : 1300
- Hopper/Stacker capacity, notes : 100/100
- Counting modes : Simple count, Add, Batch
- Batch, notes: 1-100
- Count error detections : DBL,SD,HLF,Chain
- Counterfeit detections: UV
- Display type, count/batch digits : LED, 4/3
- Power input, V/Hz : 220/50
- Power consumption, W : <80
- Dimensions (W*H*D),mm/inches : 295*240*175 / 11.7*9.5*6.9
- Weight, kg/lbs : 5 / 11
Cassida 5520 Series
Multi-currency count and detection
- Count multiple currencies including AED, USD, EUR, etc.
- Accurate and reliable bill counting, regardless of currency condition
- Sensors adjustment to different currencies at the push of a button with control panel sensitivity settings (service mode)
Constant count quality
- Engineered for performance and designed for streamlined maintenance
- High quality construction ensures reliability
- Effective and dependable motor ensures fast,failure free counting
- Anti-static system allows counting in low humidity surroundings
- Waterproof and anti-dust panel prevents moisture build-up and button sticks
Value calculation and more
- Calculate the total value and the total number of bills counted for each denomination
- Track counts of different denominations and calculate a grand total by using ValuCount and add mode
Cashier comforts
- Any suspect bill is left on top of the counted bill stack and not included in total sum
- Quiet operation
Specification
- Counting speed, notes/min : 1300
- Hopper/Stacker capacity, notes : 100/100
- Counting modes : Simple count, ValuCountTM, Add, Batch
- Batch, notes : 20, 50,100, 1-999
- Count error detections : DBL,HLF,Chain,SD
- Counterfeit detections : UV (UV, UV/MG models), MG (UV/MG model)
- Reports on the display : Counting mode,Error code,Total number of bills,Selected denomination,Total value of the selected denomination,Total value of all counted bills
- Remote display : Optional
- Display type : LED
- Power input, V/Hz : 220/50
- Power consumption, W : <70
- Dimensions (W*H*D),mm/inches : 175*240*295 / 6.9*9.5*11.7
- Weight, kg/lbs : 5 / 11.1
Cassida 6650 Series
Multi-currency count and detection
- Count multiple currencies including AED, USD, EUR, etc.
- Accurate and reliable bill counting, regardless of currency condition
- Sensors adjustment to different currencies at the push of a button with control panel sensitivity settings (service mode)
- Counterfeit detection can be easily switched on/off on the control panel
Constant count quality
- Engineered for performance and designed for streamlined maintenance
- High quality construction assures reliability
- Advanced technology allows quick bill counting and counterfeit detection simultaneously
- Voltage surge protection and quiet operation
Value calculation and more
- Calculate the total value and the total number of bills counted for each denomination
- Track counts of different denominations and calculate a grand total by using ValuCount and add mode
Cashier comforts
- Any suspect bill is left on top of the counted bill stack and not included in total sum
- Easy to use regardless or experience level, thanks to a comfortable and intuitive control panel that allows changes at the push of a button
Specification
- Counting speed, notes/min : 1300
- Hopper/Stacker capacity, notes : 400/300
- Counting modes : Simple count, ValuCountTM, Add, Batch
- Batch, notes : 10, 20, 25, 50, 100, 1-999
- Count error detections : DBL,HLF,Chain,SD
- Counterfeit detections : UV (UV, UV/MG models) MG (UV/MG model)
- Reports on the display : Counting mode, Error code, Total number of bills, Selected denomination, Total value of the selected, denomination, Total value of all counted
- Remote display : Optional
- Display type ; count/batch digits : LED, 4/
- Power input, V/Hz : 220/50
- Power consumption, W : <80
- Dimensions (W*H*D),mm/inches : 280*250*150 / 11” *9.8” *5.9
- Weight, kg/lbs : 5 / 11
Cassida 7700 Series
Multi-currency count and detection
- Count multiple currencies including AED, USD, EUR, etc.
- Accurate and reliable bill counting, regardless of currency condition
- Easily switch between currencies at the push of a button with control panel settings
- Sensors adjustment to different currencies at the push of a button with control panel sensitivity settings (servic emode)
- Auto adjustability assures easier, accurate currency counting
Constant count quality
- Exclusive flip-feeder ensures accurate bill feeding, regardless of users’ experience with bill counters
- Water proof and anti-dust panel prevents moisture build-up and button sticks
- Built-in power surge protector
Value calculation and more
- Calculate the total value and the total number of bills counted for each denomination
- Track counts of different denominations and calculate a grand total by using ValuCount and add mode
Comfortable for cashier
- Displays both total number and total value of selected currency denominations
- Any suspect bill is left on top of the counted bill stack and not included in total sum
- Quiet operation
Specification
- Counting speed, notes/min : 1000
- Hopper/Stacker capacity, notes : 200/200
- Counting modes : Simple count, ValuCountTM, Add, Batch
- Batch, notes : 1-999 or 10,20,25,50,100
- Size of countable note : 50*100~100*182
- Count error detections : DBL,HLF,Chain,SD
- Counterfeit detections : UV (UV, UV/MG models) MG (UV/MG model)
- Reports on the display : Counting mode, Error code, Total number of bills, Selected currency, Selected denomination, Total value of the selected, denomination, Total value of all counted bills
- Display type; count/batch digits : LED; 4/3
- Power input, V/Hz : 220/50
- Power consumption, W : 45
- Dimensions (W*H*D),mm/inches : 279*272*210/11*10.1*8.3
- Weight, kg/lbs : 6/13.2
Cassida Advantec75 Series
Multi-currency count and detection
- Count multiple currencies including AED, USD, EUR, etc.
- Accurate and reliable bill counting, regardless of currency condition
- Change currency settings right at the push of a button, allowing quick counts of multiple currencies
- Counter feit detection can be easily switched on/off
Constant count quality
- Heavy-duty technology and high quality construction assure reliable performance
- Effective and dependable motor ensures fast counting without sacrificing accuracy or crucial counterfeit detection capabilities
- Four speed settings ensure smooth counting of both worn and new bills
- Waterproof and anti-dust panel prevents moisture build-up and button sticks
Specification
- Counting speed, notes/min : 800/1000/1200/1800
- Hopper/Stacker capacity, notes : 425/350
- Counting modes : Simple Count, Single Value Count, Add, Batch, Add+Batch
- Batch, notes : 1-999
- Selectable denominations : 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000
- Count error detections : DBL, HLF, Chain, SD
- Counterfeit detections : UV (UV, UV/MG models) MG (UV/MG model)
- Reports on the display : Counting mode, Massage error and its remedy, Total number of bills, Selected detections and their sensitivity level
- Remote display : Optional
- Display type : LCD
- Power input, V/Hz : 110-220/50-60
- Power consumption, W : 40
- Dimensions (W*H*D),mm/inches : 390*300*345 / 15.4*11.8*13.6
- Weight, kg/lbs : 7 / 15.4
Cassida Cube
Multi-currency detection
- Verify up to 10 currencies including AED, USD
- Ability to change the basic version on the currencies list
- Unlimited currency combinations
Constant control quality
- System self-diagnoses itself at machine start-up
- Easy software update via PC
- Advanced software provides accurate and fast verification
Specification
- Currency range(basic version, 5 currencies) : AED, USD, EUR, GBP, GHS, LBP, SYR, TRL, AUD, ZAR
- Number of currencies : Up to 10
- Detecting speed, bills/min : 250
- Hopper/stacker capacity, bills : 100/100
- Counterfeit detections : 3D, UV, IMG, RGB, MG, IR
- Reports on the display : Operation mode, Selected currency, Bill denomination, Total number of bills, Total value of all counted bills, Total number and value for, each denomination, Error messages, Battery level
- Operation mode : Mix count, Sort (denomination) count, Add, Batch
- SW update via PC : Micro-SD, USB
- Display type : LCD
- Power input, V/Hz : 100-240/50-60
- Battery (option), mAH : 2000
- Power consumption(sleep/operation), W : 100/100
- Dimensions : 170*157*152
- Weight, kg : 1.8
Cassida Xpecto
Multi-currency value counter
- Capable to count up to 6 currencies.
- Mixed currencies counting is possible in case there are different currencies in one stack.
- Advanced technology allows quick bill counting and counterfeit detection simultaneously.
- Sorting of bank notes by year of release is possible.
- Sorting of bank notes by orientation is possible in which orientation is determined by first counted bank note.
Constant count and detection quality
- 3 different speeds for counting and detection of bank notes of any condition in any mode.
- Smooth counting of both worn and new bills.
- Constructed of durable materials.
- Easy software updates on newly issued bank notes or currency changes via USB.
- Engineered for easy, care-free maintenance.
Cashier comfort
- Displays detailed information for actual count.
Specification
- Currency Range : Optional
- Currency Number : 6
- Counting Speed : 800/1000/1200
- Sorting Speed : 800/100/1200
- Hopper/Stacker : 400-500/200
- Operating Modes : ADD or BATCH, ADD+BATCH, Count single denomination bill, Value counting by mixed denominations
- Count error detections : DBL, HLF, Chain, SD
- Counterfeit detections : UV, MG, MT, IR, 2 CIS IR
- Reports on the display : Counting Mode, Selected Denomination, Total number of bills, Total value of all counted bills, Total number and value for each denomination, Error code
- Bill size, mm : 110*60, 185*90
- Display type : 3.3 LCD Color touchscreen
- Printer: Option : Option
- Power Source, V/Hz : 220/50, 110/60
- Power Consumption, W : 40
- Connection Port : USB, RS232, LAN
- Unit Dimensions W*D*H, mm : 280*240*280
- Net Weight, Kg : 5.6
- Gross Weight, Kg : 7
Cassida XpectoLite
The Cassida Xpecto Lite is a new innovation of an affordable but of top-quality Single Pocket Value Counter. It is convenient and easy to use with CIS, UV, MG, IR detections.
Advantages
- Fast and accurate counting and sorting
- Automatically sorts mixed bills as sort mode stops and alerts each time there’s a change in the denomination.
- Professional CIS, UV, MG, IR detection system to guarantee the authenticity of the bills.
- User-friendly display screen which allows quick access and mastery of each mode functions.
Specification
- Counting Speed : 800/1000/1200 bills/minute
- Counterfeit detections : UV, MG, IR, CIS
- Hopper Capacity, bills : 600
- Stacker capacity, bills : 250
- Modes : Mix, Sort, Count, Face, Orientation, Add, Batch
- Display : 3.2″ LCD Screen
- Interface : RJ-1 1, RJ-45, RS-232, USB
- Banknote Size Range : 120 * 60 mm to 180 * 90 mm
- Unit Dimension (W*D*H), mm : 267 * 267 * 298
- Weight, kg : 6.4

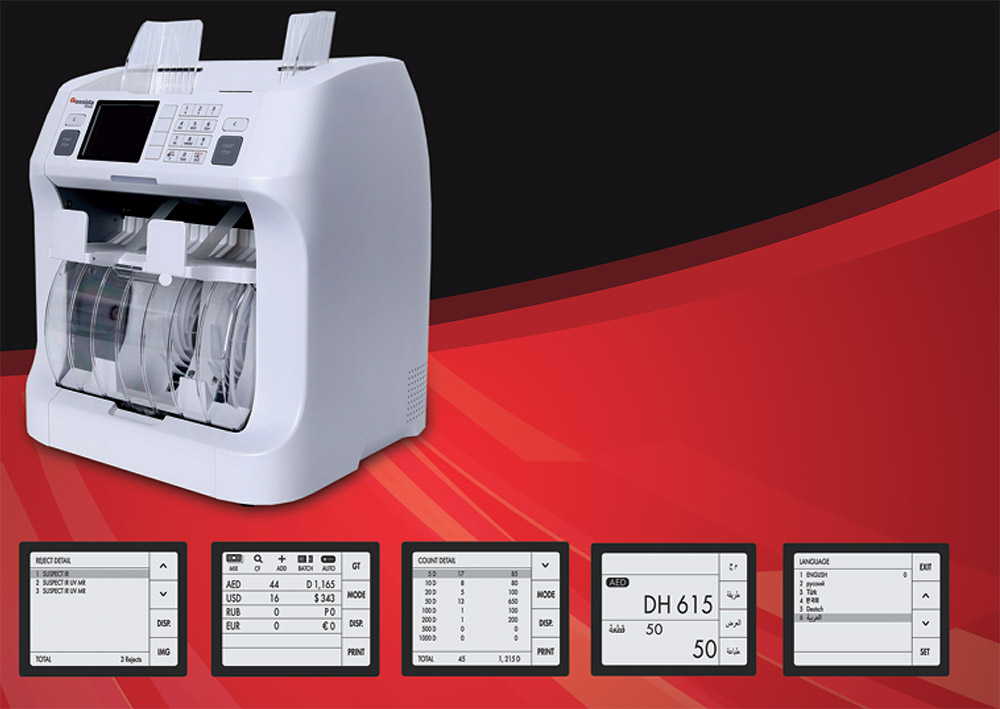

Cassida Zeus
Multi-currency count and detection
- 10 operation modes (2 counts, 1 add, 3 batches, 4 sort)
- Up to 10 currencies including AED, USD, GBP, EUR, INR
- Possibility to change the basic version of the currencies list (optional)
- Mixed currencies counting is possible in case there are different currencies in one stack
- Sort mode by the year issue in different versions (pictures) for AED, USD, EUR, INR
- Sort mode for dog ears
- Advanced technology allows quick bill counting and counterfeit detection simultaneously
- State-of-the-art detection technology to detect entire bill surfaces
Specification
- Currency range(basic version) : AED, SAR, OMR, QAR, BHD, KWD, USD, GBP, EUR, CHF, RUB, TRY, INR, PKR
- Currency number : 7 or 10
- Counting speed, bills/min : 800/1000
- Sorting speed, bills/min : 800/1000
- Hopper/Stacker/Reject capacity, bills : 500/200/100
- Operating modes : Simple count, Mix count, Batch by amount, Batch by quantity, Batch by denomination, Add, Denomination sort, Face sort, Orientation sort, Year issue sort, Dog ear sort
- Count error detections : DBL, HLF, Chain, SD
- Counterfeit detections : 3D, UV, MG, MT, IR, CIS
- Reports on the display : Counting mode, Selected currency, Selected denomination, Selected quantity or amount, Total number of bills, Total value of all counted bills, Total number and value for each denomination, Total number of rejected bills and reason, Error alerts for the rejected bill, Speed
- Bill size, mm : from 60×90 to 120×180
- Display type : LCD 2.8
- Printer : Option
- Power input, V/Hz : 100-240/50-60
- Power consumption, W : 50
- Dimensions (W*H*D), mm : 250*276*306
- Weight, kg : 7.6
- Interface : RJ45 x 1 for PC connection, RJ12 x 1 for external screen connection, RS232 (female) x 1 for printer, connection USB x 2
Hitachi IH100
Hitachi ih100 is an advanced, intelligent single-pocket Currency Counter and Discriminator with three counterfeit detection modes – Ultra-Violet (UV), Magnetic (MG) and Infrared (IR). Using Full IR CIS sensors, it can recognize the value and count of U.S. money. The clamshell-styled front cover allows for easy access to sensors/rollers for cleaning and removing notes, if necessary.
Features
- Counts and Identifies all US denominations
- Rejects suspect banknotes and rules out identification errors. The machine stops automatically and the suspect banknote will not be counted.
- Three Counting Modes:
Mixed: Counts mixed currency without presorting and gives individual counts and values.
Piece: Standard piece counting.
Mixed Sorting: Counts one denomination and stops on any other denomination. - Three Counterfeit Modes:
UV – Ultra-Violet Detection
MG – Magnetic Detection
IR – Infrared Detection - Very tolerant to worn and soiled banknotes.
- Hinged design for easy access and cleaning
- Large blue backlit LCD
- Small portable/footprint
- Preset and Manual batch settings
- RS232 port / USB port
- Updatable software for new bills via USB port.
Specification
- Dimensions – 12.50(w) x 9.25(h) x 11.0(d)
- Weight – 22 lbs 10 Kg
- Type of currency – USD,EURO,SAR,OMR,QMR,GBP,AED
- Number of pockets – 1
- Counting Speed – 1100 notes/min (piece count)
- 1000 notes/min (mixed count)
- Hopper Capacity – 500 notes
- Stacker capacity – 200 notes
- Display – 3.1 inch Graphic LCD
- Counterfeit Detection – UV / IR / MG
Hitachi iH-110 Series
High-speed Image processing technologies
- Full color dual CIS sensor / Can be scanned 10 different images
- Capture and Record of OCR,MICR and Barcode / Deposit full color image
- Can be installed more than 40 currencies / Mix & Multi currency mode
Advanced sensor technologies
- Equipped with a range of counterfeit detection technologies
- Reliable fitness sorting / Excellent tape detection performance
User-Friendly System
- 2 teller user mode indicator / Multi-user mode / Full color touch screen
- Easy operation, Simple maintenance
Remote monitoring & management system
- Related solution : Smart Integration Manager (SIM)
Specification
- Currency : Up to 40 currencies, 16 currencies(Mix & Multi)
- Operating Speed(can be installed more than 40 currencies)-Max 1,300 NPM : Value counting with counterfeit detection
- Operating Speed(can be installed more than 40 currencies)-Max 1,OOO NPM : Fitness sorting with counterfeit detection, Capture and Record : OCR, MICR, Tickets, etc, Capture and Record : Full color image with OCR
- Pocket Capacity – Hopper : iH-110/iH-110S/iH-110B : 500 notes, iH-110F/iH-110FS : 1,000 notes
- Pocket Capacity – Reject : 60 notes(Max 100 notes)
- Pocket Capacity – Stacker : 200 notes(Max 300 notes)
- Display : 4.3″ Full color LCD Touch screen
- Mode : Mix(Face, Orientation) / Different Denomination(Face, Orientation) / Count / Serial No. / Fitness / etc
- Dimension(W/D/H) : iH-110/iH-110S/iH-110B : 300 x 320 x 315mm, iH-110F/iH-110FS : 300 x 320 x 345mm
- Weight : iH-110/iH-110S/iH-110B : 13kg, iH-110F/iH-110FS : 14.5kg
- Interface : LAN(Giga), USB(H), USB(S), RS232C
- Power Supply :100 – 240V ± 10%, 1.2A – 0.6A, 50/60Hz
- Sensor Information : Full color dual CIS – 8 Images, IR transmission, IR reflection, RGB, Full line magnetic sensor (16 Channel), Thickness(Tape) /Double detection sensor (12 Channel / 2 Channel), UV Reflection(4 Channel), Transmission(4 Channel), Fluorescence (4 Channel)
- Options :External LCD display / OSD (On Screen Display : Video surveillance system) / Thermal printer
Hitachi ST-150 Series
High-level Multifunctional Sorter
- Available up to 10 currencies
- Complete authentication
- High-level fitness sorting
- Accurate serial number recognition
Highly Convenient and Easy Operation
- Highly visible 4.3 inch color graphic LCD
- Convenient audio alert for notification or error
- Easy upgrade by LAN or USB
- Flexibly designed menu and GUI
- Duplicated key buttons for two tellers (option)
Specification
- Counterfeit Detection : CIS, IR, MG, UV, Dual CIS
- Currency : Maximum 10 currencies
- High Speed Value Counting – Count Only : 1200 Notes / Min
- High Speed Value Counting – Value : 1200 Notes / Min
- High Speed Value Counting – Fitness (ST-150N) : 1200 Notes / Min
- High Speed Value Counting – Serial (option) : 1,000 notes/min
- Fitness : Stains, Limpness, Dog-ears, Tears, Holes, Folds, Multilations, Thickness, Repairs, Composed, De-inked, Graffiti, Soil, etc.
- User Interface : Colors TFT-LCD (4.3inch), Audio
- Pocket Capacity (New / Old) – Hopper : Over 500 notes
- Pocket Capacity (New / Old) – Reject Pocket : 100 notes
- Pocket Capacity (New / Old) – Stacker : 250 notes
- Dimensions : 300(W) x 321(D) x 310(H) mm
- Weight : Net: 13.9 kg, Gross: 15.7 kg
- Power Supply : 100-240V AC, 50/60Hz
- Globalization : Multi language support
- Communication Channel : LAN, USB, RS232C (External display, Thermal printer)
- Upgrade : LAN, USB
Hitachi ST-300 MTS
Fitness Sorting
- More complete level
• Designed to fitness sort and authenticate banknotes with an unprecedented level of accuracy and security
• Fitness sorting for holes, tears, dog-ears, tape, soil, stains, folded, de-inked banknotes, etc. - Continuous and uninterrupted sorting
• Fitness sorting and authentication with a processing speed of 700 notes per minute - Multi-currency application
• Purpose designed for multi-currency, multi-level fitness sorting and authentication
Easy maintenance
- Easy upgrade with a USB memory stick
- Easy removal of jammed notes from opening top section
- Easy cleaning & removal of dust from dust tray
User-friendly functions
- Easy control keys with GUI(Graphical User Interface)
• Equipped with touch screen buttons & 5 keys - 7” Full-color graphic LCD display
• Easy to read & carry out functions - High connectivity interfaces
• LAN, USB, RS232C, USB port x 2, & Video out(15 pin D-SUB)
Specification
- Counterfeit Detection : Full Line Magnetic Sensor, IR Transmission Full Image, UV Reflection x 4, Fluorescence x 4
- Operation Speed (Value Counting) : 1,000 notes/min
- Operation Speed (Fitness Sorting) : 700 notes/min
- Operation Speed (Serial Number Printout) : 650 notes/min
- Dimensions : 534(W) x 454(D) x 481(H) mm
- Capacity(Hopper) : 600 notes
- Capacity(Stacker x 3) : 200 notes
- Capacity(Reject Pocket) : 200 notes
- Power Supply(Voltage) : 100 ~ 240V AC
- Power Supply(Frequency) : 50/60Hz
- Power Supply(Rated Current) : Max 1.2A
- Operation Condition : Temperature 5~35 C
- Weight : Net : 47 Kg, Gross : 56 Kg
Hitachi ST-350
ST-350 is a smart, practical multi-currency fitness sorter and banknote counter designed for users’ convenience. ST-350 is optimized for high
performance, enhanced authentication and easy operation.
Fitness Sorting
- More complete level
• Designed to fitness sort and authenticate banknotes with an unprecedented level of accuracy and security
• Fitness sorting for holes, tears, dog-ears, tape, soil, stains, folded, de-inked banknotes, etc. - Continuous and uninterrupted sorting
• Fitness sorting and authentication with a processing
speed of 700 notes per minute - Multi-currency application
• Purpose designed for multi-currency, multi-level fitness sorting and authentication
Easy maintenance
- Easy upgrade with a USB memory stick
- Easy removal of jammed notes from opening top section
- Easy cleaning & removal of dust from dust tray
User-friendly functions
- Easy control keys with GUI(Graphical User Interface)
• Equipped with touch screen buttons & 5 keys - 7” Full-color graphic LCD display
• Easy to read & carry out functions - High connectivity interfaces
• LAN, USB, RS232C, USB port x 2, & Video out(15 pin D-SUB)
Specification
- Counterfeit Detection : Full Line Magnetic Sensor, IR Transmission Full Image, UV Reflection x 4, Fluorescence x 4
- Operation Speed (Value Counting) : 1,000 notes/min
- Operation Speed (Fitness Sorting) : 700 notes/min
- Operation Speed (Serial Number Printout) : 650 notes/min
- Dimensions : 534(W) x 454(D) x 481(H) mm
- Capacity(Hopper) : 600 notes
- Capacity(Stacker x 3) : 200 notes
- Capacity(Reject Pocket) : 100 notes
- Power Supply(Voltage) : 100 ~ 240V AC
- Power Supply(Frequency) : 50/60Hz
- Power Supply(Rated Current) : Max 1.2A
- Operation Condition : Temperature 5~35 C
- Weight : Net : 47 Kg, Gross : 57 Kg

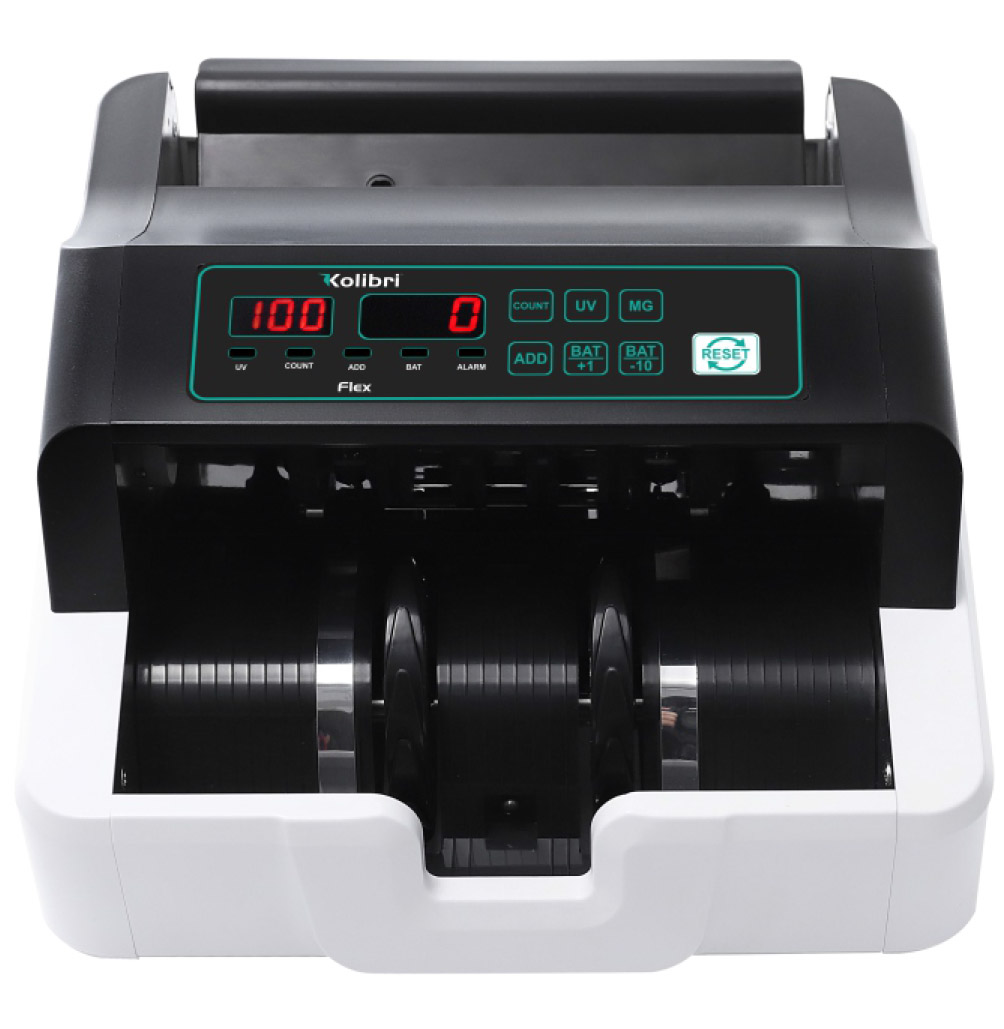

Kolibri Flex
- High contrast LED Display
- Compact design
- Best for retail
Product Features
- Simple and easy to use set-up Counts quickly and accurately up to 1000 bills/minute.
- Includes Count, Add and Batch modes for a wide variety of money counting needs.
- Purchase with confidence: Kolibri Flex is backed with 1-year warranty
Specification
- Counting Speed, bills/min : 1000
- Hopper Capacity, bills : 100
- Stacker Capacity, bills : 100
- Counting Modes : Simple Count, Add, Batch
- Counterfeit Detection : UV, MG
- Reports on the Display : Counting mode, Error code, Total number of bills
- Display : LED
- Power Supply : AC 110-240 V / 50/60 Hz
- Power Consumption : 90 W
- Dimensions (W*D*H),mm : 240*230*140
- Weight, kg : 3
Kolibri Prime
Product Features
- Multiple-currency counting
- Works efficiently with bad quality bills
- Sensors can be adjusted to different currencies with Sensors Parameter Setting
- ValuCount™ uses the selected denomination to calculate the total monetary value of bills counted. Functions include Count, Add, Batch and Add with Batch modes too.
- Ultraviolet sensors check for counterfeit bills and stop counting with an alert if a suspect bill is detected. The UV/MG model includes magnetic ink detection as well for an extra layer of security
- Infrared detectors ensure that bills are counted accurately and avoid errors such as chains, double bills and half notes.
Specification
- Counting Speed, bills/min : 1000
- Hopper Capacity, bills : 300-400
- Stacker capacity, bills : 200
- Counting Modes : Simple Count, ValuCount™, Add, Batch
- Counterfeit Detection : UV, MG, IR
- Reports on the Display: Counting mode, Error code, Total number of bills, Selected denomination, Total value of the selected denomination, Total value of all counted bills
- Display : LCD
- Remote Display : Optional
- Power Supply : AC 100-240V/50/60Hz
- Power Consumption : 60 W
- Dimensions (W*D*H), mm : 268*210*237
- Weight, kg : 3.9
Kolibri Signature
Faster, More Accurate Counting
Automatically reads mixed stack of bills as it passes to count and sort based on denomination in no time!
Automatically Sorts Mixed Bills
Never stop counting or sorting for a suspect bill, incorrect denomination or face. Those bills are sorted out into the reject pocket.
Protects Against Counterfeits
2 CIS, ultraviolet, infrared, and magnetic detection systems ensure bills are authentic–far more accurately than any pen or light!
Easy for Anyone to Use
Easy-to-use interface, large LCD display, on-screen report and built-in printer to simplify this advanced cash counting system and save time.
Specification
- Pockets : 2
- Modes : Mix, Sort, Count, Face, Orientation, Add, Batch
- Counterfeit Detection : Ultraviolet, Magnetic, Infrared, 2 CIS
- Counting Speed : 800/1,000/1,200 Bills per minute
- Hopper Capacity : 500 Bills (Uncirculated)
- Stacker Capacity : 200 Bills (Uncirculated)
- Size : 10.5″ x 10.5″ x 11.7″ (267mm x 267mm x 298mm)
- Weight : 22 lbs. (10kg)
- Display : Color Graphic LCD Screen 3 1/2″
- Interface : SD Card Slot, USB port
- Power Supply : AC 100 V, 60Hz
LIDIX CL-2
Dual CIS system
- Dual Side Serial Number Recognition
- 30 Currencies adoptable
- Auto & Multi Currency
- 4 Selectable Speed System
- 4.3″ Color Touch LCD
- Easy Maintenance
Special Features
- Dual CIS, UV, MG, Ultrasonic
- SIN – OCR system
- LAN
- TITO Scanning System
Basic Function
- Count Mode Mix Mode
- SP Mode (Denomination Mode)
- DIR (Orientation Mode)
Specification
- SPEED (Piece Counting) : 1,500 notes/min
- SPEED (Value Counting ) : 1,200 / 1,000 / 800 notes/min
- SPEED (Serial No. Printing) : 800 notes/min
- Countable Note Size : Max. 182 x 95 mm, Min. 100 x60 mm
- Hopper Capacity : Max. 500 notes
- Stacker Capacity : Max. 250 notes
- INTERFACE : SD Card, LAN, RS232C
- WEIGHT : Appx. 6kg
- DIMENSION (WxDxH) : 270mm x 232mm x 226mm
- DISPLAY : 4.3″ Color Touch LCD
- SENSORS : Dual CIS, Ultrasonic, IR, UV, MG
- Power : AC 100~240V 50/60 Hz
- Power Consumption : 2.5A, 60W

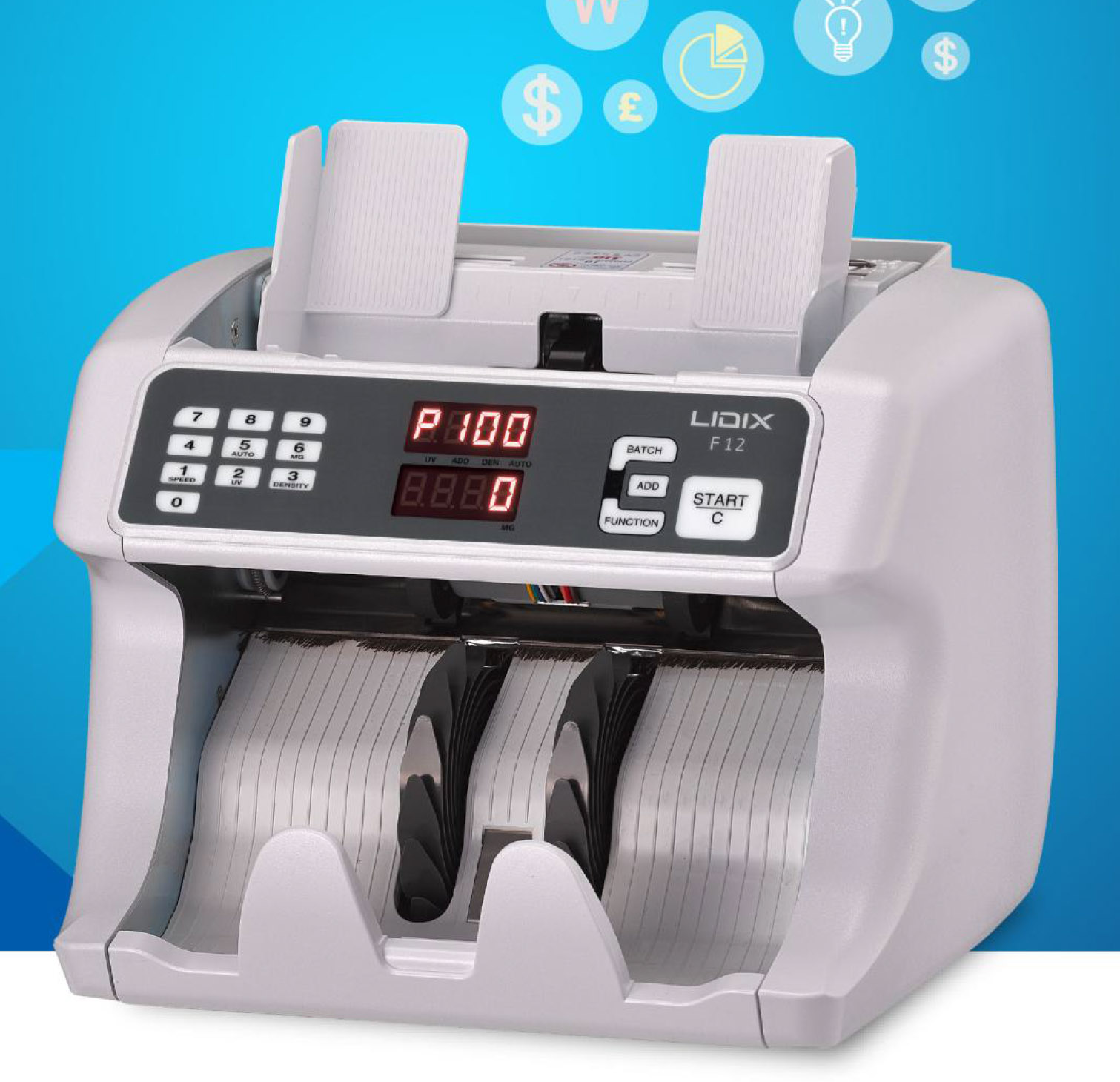

LIDIX F Series
- Heavy Duty Friction Type One Pocket Currency Counter
- CV Based on Years Experience, Accurate & Consistent Counting
- Ability Even for the Dirty Notes
- Compact Design
- Easy Maintenance
Accurate banknote counting devices coupled with state-of-the-art sensor technology will ensure time saving and improved security for your cash handling operations.
- Three Selectable Counting Speeds. (up to 1,500 notes/min)
- Optional Counterfeit Detection. (UV, MG, IR)
- Self-Diagnostic System for Easy Maintenance
- Automatic Density Level
- Continuous & Batch Counting Function
- Automatic & Manual Start/Stop
Specification
- Pockets : 1 Stacker
- Counterfeit detection : UV, MG, IR (Option)
- Speed : 1000, 1200,1500 notes/ min
- Hopper Capacity : 300 sheets
- Stacker Capacity : 200 sheets
- Power : AC 110~240V 50/60 Hz
- Power Consume : 40W
- Dimensions : 284(W) x 232(D) x 194(H) mm
- Weight : Approx5.5kg
- Mode : Co, Batch & ADD
Magner 100 Plus
The NEW Magner 100 Plus is a technologically advanced, desktop value currency counter. Utilizing full line CIS (contact image sensor) and new White sensor, the Model 100 Plus is able to discriminate notes by denomination and orientation, while at the same time providing the highest level of protection against counterfeits.
Specification
- Applicable Currencies : Up to 7 Currencies
- Speed(Piece count) : 1,400 Notes/min
- Speed(Value count) : 900 Notes/min
- Hopper Capacity : 500 Notes
- Stacker Capacity : 200 Notes
- Feed System : Friction Roller
- Display : 3.1 Inch Graphic LCD (192 x 128 dot)
- Denomination Detection : CIS (Contact Image Sensor)
- Thickness of Currencies : 0.08-0.12mm
- Size of Currencies : W: 100-180mm H: 60-90mm
- Dimensions : 296(W) x 325(D) x 280(H)mm
- Weight : 10kg
- Power Supply : 100/240V, 50/60Hz
- Power Consumption : 140W
Magner 165
The Magner 165 is the end result of 30 months of market analysis, customer feedback, and engineering collaboration. The Model 165 is truly the first “madeto-order” 1.5 pocket sorter. Offering all of the standard features of 1.5 pocket sorters in the market today, including new modern innovations, the Magner 165 can be custom-tailored to meet the current and future needs of the user. The ultra visible 4.3 inch touch display gives the operator unprecedented detail and authority over each banknote or document counted
Specification
- Applicable Currencies : 40 Maximum
- Speed : 1,500 Notes/Min
- Hopper Capacity : 500 Notes
- Stacker Capacity : 200 Notes
- Reject Capacity : 100 Notes
- Feed System : Friction Roller
- Display : 4.3 inch touch screen LCD
- Denomination Detection : 2 RGB (full color) CIS (Contact Image Sensor)
- Thickness of Currencies : 0.05-0.2mm
- Size of Currencies : W: 50-190mm H: 40-180mm
- Dimensions : 300(W) x 320(D) x 315(H)mm
- Weight : 13kg
- Power Supply : 100/240V, 50/60Hz
- Power Consumption : 100W
Magner 175VF
The Magner 175VF continues to push the boundaries of technology, using the latest detection sensors, programming, and customer input. These fine aspects are modeled into our finest creation for easy user operation, accuracy, and profitability with efficient high speed counting.
Specification
| Characteristics | Description |
|---|---|
| Applicable Currencies: | 10 Maximum |
| Speed: | Count & value: 1,300 Notes/min |
| Hopper Capacity: | 500 Notes |
| Stacker Capacity: | 250 Notes |
| Reject Capacity: | 100 Notes |
| Feed System: | Friction Roller |
| Display: | 4.3 inch color graphic LCD with manual buttons |
| Denomination Detection: | 2 RGB CIS (Contact Image Sensor) |
| Thickness of Currencies: | 0.08-0.12mm |
| Size of Currencies: | W: 100-186mm, H: 60-95mm |
| Dimensions: | 300(W) x 321(D) X 310(H)mm |
| Weight: | 15.7kg |
| Power Supply: | 100/240V, 50/60Hz |
| Power Consumption: | 144W |
Magner 350
The Magner 350 is a multi-pocket banknote currency counter and sorting solution. Designed for mixed denominations, the adjustable counting speed allows counting of both new and unfit banknotes with several sorting features. The Magner 350 includes a touch screen interface, user friendly operation, and easy maintenance. High connectivity also allows the operator to project onto a bigger screen if needed using the embedded operating system Windows CE.
Specification
| Characteristics | Description |
|---|---|
| Applicable Currencies: | Maximum of 10 |
| Speed: | Piece/value: 1,000 Notes/min Fitness: 700 Notes/min |
| Hopper Capacity: | 600 Notes |
| Stacker Capacity: | 200 Notes x 3 |
| Reject Capacity: | 100 Notes |
| Feed System: | Friction Roller |
| Display: | 7 inch Touch Screen Full Color LCD and 5 Manual Function Keys |
| Denomination Detection: | Full line MG (magnetic) sensor, IR transmission, UV reflection |
| Thickness of Currencies: | 0.08-0.12mm |
| Size of Currencies: | W: 100-190mm, H: 60-90mm |
| Dimensions: | 534(W) x 455(D) x 481(H)mm |
| Weight: | 47kg |
| Power Supply: | 100/240V, 50/60Hz |
| Power Consumption: | 249W |
MIB SB-9
- World’s Smallest Size
- Affordable 2 Pocket Value Counter
- Easy Maintenance
- Far Less Jams Due to Shorter Path
- 4 Readable CF Detecting Features(CIS, IR, MR, UV)
- Remote Upgrade(LAN) **
- Barcode Reading *
- OCR *
Specification
- Dimension (WxDxH) : 280 x 269 x 261 mm (Footprint smaller than A4 or Letter size paper)
- Counting Speed : 1000 NPM (CF ON), 1200 NPM (CF OFF), 1500 NPM (Piece Count)
- Weight : Approx. 8 Kg
- Interface : 2* RS232C/2*USB(LAN)
- Hopper Capacity : Approx. 500 notes
- Power Supply : AC 110V: 93.5VAC ~ 137VAC, AC 230V: 187VAC ~ 275VAC, 50/60Hz
- Stacker Capacity : Max. 200 notes
- Bank Note Size : W:100~185 H:50~90 mm
- Reject Capacity : Max. 70 notes
- Bank Note Thickness : 0.07~0.12 mm
Ribao BC-40
Features
- The most cost-effective solution for value counting and counterfeit detection(ECB approved)
- Perfect solutions for retail customerand bank front desk.
- User freindly menu design easy for orperation.
- Classical feeding system ensures smooth counting for new and worn notes.
- Portable and compact design with small footprint.
- Easy access to the passage to do the maintenance.
Specification
Sensor
- CIS: Single CIS
- IR: Full Line
- MT: 1 Channel
- MG: 0 Channel (Option: 4 Channel)
- UV: 1 Channel (Option: 2 Channel)
Speed
- CNT Mode: 1500pcs/min.
- Value Mode: 1000,1200pcs/min.
Pocket Capacity
- Hopper: Approx 600pcs
- Stacker: 200pcs
Currency Capacity: 4 Currencies(Maximum)
Display: 3.5 inch TFT-LCD touch screen
Dimensions: 287(H)× 240(W)× 232(D) mm
Weight: 6kg
Interface: USB,RS232,RJ12
Upgrade: USB
Options: Externa Display, Thermal Printer
Ribao BCS-160
- Serial number recognition & comparison (option) : Serial number is recognized by using OCR technology.
- Multi-language opertation interface (option) is available.
- Mix currency and automatic recognition (option): Can support 3-5 different currencies automatic recognition and counting at the same time.
- Mulit-currency software support can be upt o 20 different currencies (option): More than 60 different currencies software has been developed to choose.
Specification
Speed
- CNT Mode: 1200 (Max: 1500)pcs/min
- MIX and SDC Mode: 1000 pcs/min
- Seriel Number Reading (option): 800pcs/min
- Serial Number Comparison (option): 600pcs/min
- Fitness (option): 600pcs/min
Pocket Capacity
- Hopper: 500 pcs
- Reject Pocket: 50pcs(MAX 100 pcs)
- Stacker: 200 pcs
Noise Level
- Running without notes counting: <58DB
- In counting the notes:<70DB
Counterfeit Detection: Dual CIS, UV,MG, IR.
Currency Capacity: Maximum 20 Currencies
Fitness (option): “Dog-ears, Holes, taps, limpness, stains, folds, thickness.”
Display: ColorTFT-LCD(3.5 inch),Buzzer.
Dimensions: 300(W)*321(D)*310(H)
Weight: 13.9kg
Power Supply: 100 ~ 240 V AC50/60HZ
Interface: LAN, USB, RS232C, RJ12.
Upgrade: USB
Ribao BC-55
- Mix Currency counting and auto recognition.
- Various anti-counterfeit features to detect the fake notes.
- Currency support: 5 currencies (standard), 32 currencies(Maximum).
- User friendly design to ensure smooth counting.
- Portable and less occupied.
- Easy access to the passage to get out the jammed notes.
Specification
Pocket Capacity
- Hopper : Approx 600pcs
- Stacker : 200pcs
Sensor : Dual CIS, MG, MT, UV
Currency Capacity : 5 currencies, 32 currencies(option)
Speed(pcs/min) : 1500(CNT Mode)
800,1000,1200(MIX mode)
800,1000(Serial Number Reading Mode)
Display : colour TFT-LCD (3.5 inch), Touch Screen
Dimensions : 287(H)×240(W)×232(D)mm
Weight : 5.9kg
Interface : USB, RS232, RJ12, WLAN
Upgrade : USB, WLAN
