Bharti Technologies Sole Proprietorship LLC, Abu Dhabi - 114299

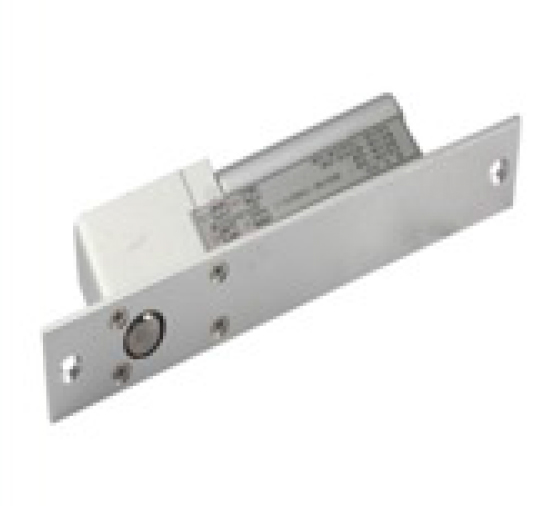

Bolt Lock NET-2C
- ET-5CPhotoelectric control technology to prevent mechanical Failure
- Ultra-low temperature design. safer and more durable
- Ultra-low power consumption design, more durable and environmentally friendly
- 500, 000 times electrified lock durability
- Build in reverse current, prevent device (MOV)
- Intelligent single chip configuration, three – level current applications
Specification
- Feature : Fail Safe
- Face Plate : 200Lx35WX4114(mm)
- Strike : 90Lx25Wx2H(mm)
- Voltage : 12VDC+
- Start Current : 900mA
- Standby Current : 110mA
- Solid Bolt : polishing housing, 80018 Holding Force
- Suitable For : Vvtooden Doer; Glass Door„Metal Door
- Autolock Time Delay : 0,3„6„9sec
- Signal Output : Door status Output.NOICOM
- Surface Temp : Low Temperature
- Surface Temp : 8mm
- Operating Temperature : -10~+55t(14-131F)
- Operating Humidity : 0~ 90% (non-condensing)
- Special Designed : Tested to 500000 operations
- Face Place Material : High Aluminum
- Weight : 0.72kg
Card And Tag
- ID Location Tag at Checkpoints
- MF Location Tag
- ID / MF/ HID Card
- Tag / NFC Tag
Specification
- ZKLT-E:ID Location Tag installed at Checkpoints for guard tour mornitoring system
- ZKLT-M:Mifare Location Tag installed at Checkpoints for guard tour mornitoring system
- ID card(thin):125kHz Proximity Card, Read only
- ID card(Thick): Proximity Card,Read only
- ID card(long range): 125kHz Proximity Card,Read only,Suitable for KR1000 for 60cm reading range
- MF Card(4K): 13.56Mhz Mifare One Card,Standard MF1 (4 Kbyte)
- MF Card(1K):13.56Mhz Mifare One Card,Standard MF1 (1 Kbyte) EEPROM
- HID Card(thin) :125KHz HID proximity card
- HID Card(thick):125KHz HID proximity card
DC12V Wired Door Bell
No need battery! There are 4 colors of wires,ren,black,yellow and green. When you connected to DC 12V power supply, then the red connected to positive (+),the black connected to negative(-).When yellow and green short ciruit, will hear two Ding-Dong, Ding-Dong sound! Fireproof Case, Durable, Fireproof, and Heat-resistant and Can be used very long time.Intellective chip. Wide application.
Specification
- Product Name: Wired Door Bell
- Power Supply: DC12V
- Humidity: 0~95%(relative)
- Surface Material: Fireproof ABS Material
- Temperature: -15~80 degree
- Power Source: Plug
- Color: White
- Application: Hotel,Office,Apartment,Private Villa.etc
- Size: 88*62*24mm
- Weight: 0.08kg
2V DC 1.2A RFID Electric Bolt Lock Frameless Glass Door NC 5 cable Access control
12V DC 1.2A RFID Electric Bolt Lock Frameless Glass Door NC 5 cable Access control
Specification
- Suitable For: 8-12mm Fully Frameless Glass Door
- Fail Safe: Lock when energized(NC)
- Cutout: 148Lx38Wx42H(mm)
- Bracket:148Lx44Wx25H(mm)
- Voltage: DC12V
- Start Current: 900mA
- Standby Current: 120mA
- Solid Bolt: polishing housing, 1000kg Holding Force
- Signal Output: Door Status Output,NO/COM
- Autolock Time Delay: 0,3,6secs.
- Surface Temp: Low Temperature
- Induction Distance: 10mm
- Operating temp: -10~+25C(14-131F)
- Operating Humidity: 0~90%(non-condensing)
- Special Designed: Tested to 500000 operations
- Face place material: High Aluminum, Carrulous Line Finished
Package List
- Electric Lock
- Magnetic Base
- Pack of Screws
- User Manual (English)
Electric Electronic Door Lock DC 12V-1
- 5pcs Computer Key DC 12V E-lock Support Wooden Glass Metal Fireproof Door for Doorbell Intercom Access Control
- High-quality stainless steel,High anti-theft and high safety
- Double lock heads inside and outside,Easy to install
- Directly connect to outdoor camera of Electric Video Door Phone and open door without connect to extra DC 12V power supply (if the video door phone supports NO unlocking mode)
- Suitable for : home, offices, schools, hotels, factories, warehouses, etc
Specification
Specifications
- Can suit both Left and Right hand door (by rotating the lock 180 Degree)
- NO (open when powered) Fail Secure Operating Mode
- Can work with all the video intercom system in my store
- High-quality stainless steel
- High anti-theft and high safety
- Double lock heads inside and outside
- With electronic-control unlocking unit and a spring adjusting balance unit
- Easy to install
- User friendly
- Support manual unlocking, 5 keys included
- Suitable for : home, offices, schools, hotels, factories, warehouses, etc
Technical Information
- Voltage : DV 9 ~ 12V, 1.5A
- Power : > 12W
- Operating Mode: NO (open when powered)
- Dimensions (strike):
– Approx. 36 (W) x 102 (H) x 51 (D) mm
– Approx. 1-3/8″ (W) x 4″ (H) x 2″ (D) inch - Dimensions (main body):
– Approx. 123 (W) x 105 (H) x 35 (D) mm
– Approx. 4-3/4″ (W) x 4-1/8″ (H) x 1-3/8″ (D) inch
Electric Lock
- Electric Strikes
- Electromagnetic Lock
- Electric Cabinet Lock
- Brackets for Electromagnetic Lock
Specification

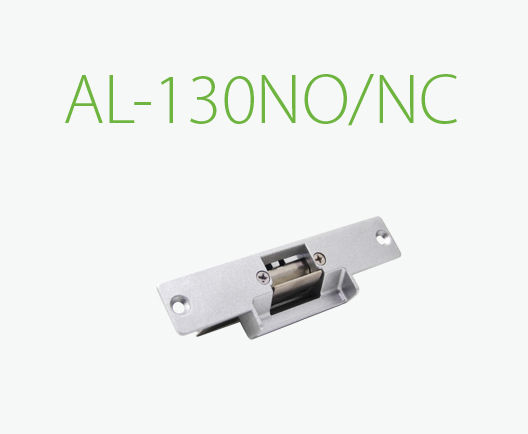

AL-130NO/NC
- Standard, concealed installation
- Power-off to lock(NO) Power-on to lock(NC
- Working Voltage: DC12V input
- Working Current: 240mA(NO) 120mA(NC)
- Holding Force: 250kg
- Weight: 0.37kg
- Lock jaw size: 29×17×11mm
- Lock body size: 150×28×35mm
- Suitable for: Wooden door
- Fail Secure/Fail Safe
AL-131NO/NC
- Wide-mouthed, concealed installation
- Power-off to lock(NO) Power-on to lock(NC)
- Working VoltageDC12V input
- Working Current240mA(NO) 120mA(NC)
- Holding Force: 400kg
- Weight 0.38kg
- Lock jaw size 45×17×11mm
- Lock body size 150×28×35mm
- Suitable for: Metallic door
- Fail Secure/Fail Safe
AL-132NO/NC
- Special, wide-mouthed, concealed installation
- Power-off to lock(NO) Power-on to lock(NC)
- Working Voltage: DC12V input
- Working Current: 240mA(NO) 120mA(NC)
- Holding Force: 400kg
- Weight: 0.41kg
- Lock jaw size: 45×17×13mm
- Lock body size: 240×25×35mm
- Suitable for: Metallic door
- Fail Secure / Fail Safe
AL-133NC
- concealed installation Power-on to lock
- Working Voltage: DC12V input
- Working Current: 240mA(NO) 120mA(NC)
- Holding Force: 250kg Weight: 0.37kg
- Lock jaw size: 29×13×11mm
- Lock body size: 150×28×35mm
- Suitable for: Metallic door
- Fail Safe
Exit Button
- ZKTeco offers a variety of exit buttons to suit every access control application.
- Non-contact Exit Button
- Remote Key
- Exit Switch
Specification
K2
- Non touch Exit Sensor with Remote Key(Diffused Detection)
- NO NC COM relay output
- Size: 115L×70W(mm)
K2S
- Non touch Exit Sensor with Remote Key(Diffused Detection)
- NO NC COM relay output
- Size: 86L×86W(mm)
K1-1D
- Non touch/Touch free Exit Sensor (Diffused Detection)
- NO NC COM relay output
- Size: 86L×86W(mm)
K1-1
- Non touch/Touch free Exit Sensor (Diffused Detection)
- NO NC COM relay output
- Size: 115L×70W(mm)
Infrared Sensor Door Exit Switch Button
No Touch IR Exit Buttons incorporates innovative touch free sensor technology using infrared sensors. With a several contact configuration options, HEYCE No Touch IR Exit Switches are fully compatible with virtually any access control door controller to work as door release switch mechanism.
- No Touch System
- Motion Detection Release Mechanism
- Infrared (IR) Sensors
- Ideal for Hygienic Environs
- Dual color LED
- Stainless steel mounting
- Quick connect com ports
Specification
- Material: Stainless steel metal
- Work temperature:-20℃~50℃
- Size: 86 X 86 X 39 mm/3.39 X 3.39 X 1.54 in
- Weight: Approx. 100g
- Suitable for 12V GND NO COM NC
- Exit button: Access control system
- Model: Button
- MPN: Not applicable
Package Content
- 1 X Infrared exit switch
- 2 X Metal screw
Power Supply
- Power Supply Without Battery Leads
- Power Supply With Battery Leads
- 12V, 3A Switch Power Supply
- Spare Part for Power Supply
Specification
PS901
- Power Supply without Battery Leads
- Input: 220V AC, 50Hz (110V optional)
- Output: 12V DC, 3A
PS902
- Power Supply without Battery Leads
- Input: 220V AC, 50Hz (110V optional)
- Output: 12V DC, 5A
PS901B
- Power Supply with Battery Leads
- Input: 220V AC, 50Hz (110V optional)
- Output: 12V DC, 3A
- 12V 7Ah battery not included
PS902B
- Power Supply with Battery Leads
- Input: 220V AC, 50Hz (110V optional)
- Output: 12V DC 5A
- 12V 7Ah battery not included
TPM005B
- Spare parts for inBIO260/460 Package B
- Power supply for Controller with uninterrupted battery function
- Input: 110-240V AC, 50/60Hz
- Output: 13.8V/5A+1A
TPM003B
- Spare parts for inBIO160 Package B
- Power supply for Controller with uninterrupted battery function
- Input: 110-240V AC, 50/60z
- Output: 13.8V/3A+1A
Protection Box
- Metal Box
- Protective Cover
Specification
Metal Box
- Metal Box for C3 Series control panel, including key, cables, iron plate etc.
WP01
- Protective Cover for TF1700/TF1600
Metal Box
- Metal Box for InBiO Series control panel, including LED indicator, key, cables, iron plate etc.
MF7
- Metal Box for F7/F708/SF200
MF2
- Metal box for F702-S/F703-S
Security Relay Box
Security Relay Box (SRB) is a value-added and cost effective single door controller to enhance access control in a simple and secure way. It receives encrypted wiegand signal from ZKAccess standalone access control devices to control the lock hence providing high safety for the door.
Specification
- Display: 2 LED indicator
- Built-in Relay: 1
- Reader Support: ZKTeco standalone
- devices that have wiegand out
- Input Format: Encrypt wiegand
- Output Contact: Electric lock, Exit button
- Lock Control Delay: Default 5s (Configurable on
- fingerprint reader/Software)
- Power In: 12V DC, 60mA
- Operating Tem.: 0 – 70 °C
- Operating Humidity: 10%-90%
- Dimension: 50X40X17mm
